Description
Model Name

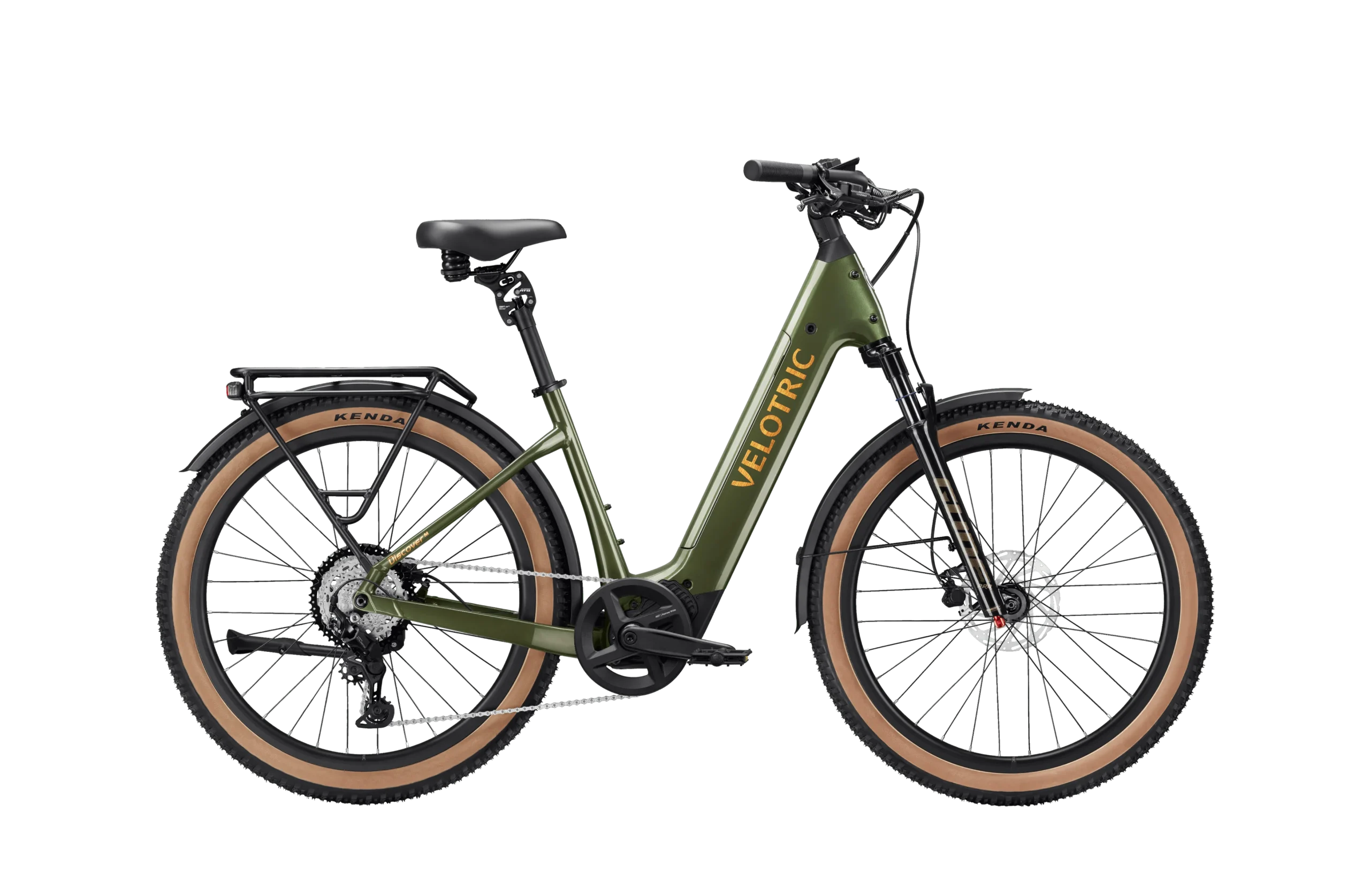

Velotric Discover M Colors: Platinum Sliver, Olivine Green
Frame
Step-Through Only
Size Guide: Bike SizeRegular / Large
User Height Range
R: 5’2” ~ 5’11” L: 5’9” ~ 6’7” (With Suspension Seatpost)
R: 4’11” ~ 5’9” L: 5’6” ~ 6’4” (Without Suspension Seatpost)
Electronics
Motor Hub: 48V, 500W, 960W (Peak Power), 100Nm
Battery: 48V, 16.7Ah (801.6Wh), IPX7, UL 2271 Certified
Cell: Samsung/LG 21700 cell, UL 2580 Certified
Charger: 48V, 3A Fast Charger
Display: 3.5″ Full color, High brightness, Bluetooth, NFC, Adjustable Angle
SensorSwap™: Torque and Cadence
USB Port: USB Type-C phone charge
Throttle Assist: Trigger-control, removable
Pedal Assist Modes: 4 Riding Modes + Auto Mode / Ride Tuning
Rear Light: Braking indicator, turn signal, steady/flash, integrated with rear rack
Front Light: 500 LM high-output integrated LED, adjustable angle
Water Resistant: IPX6 (Whole Bike)
App & Apple Find My™: App OTA, Apple Find My & Android Find Hub, NFC Card Unlock
Frameset
Frame: Triple-Butted Aluminum Alloy
Fork: Air suspension, 80mm travel with lock-out
Speed & Range
Max Speed (Default): 20 MPH
Max Speed Adjustable Range: 12 ~ 28 MPH
Class: 1 / 2 / 3
Throttle Range: 70 Miles
Pedal Assist Range: 95 Miles
Brake
Brake: Tektro Hydraulic Disc Brake
Rotors: 180mm front / 180mm rear
Brake Levers: Aluminum Alloy, with power cutoff
Weight & Load
Bike Weight: 60 Lbs
Max Bike Load: 440 Lbs
Rear Rack Load Capacity: 66 Lbs
Cockpit
Handlebar: Aluminum Alloy, Ф31.8mm, 680mm (R) / 700mm (L)
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, Ф31.8mm, 60mm length
Saddle: VELOTRIC comfort ergonomic seat
Seatpost: Aluminum Alloy, Ф30.9mm, suspension
Clamp: Aluminum Alloy, quick release
Wheel
Rims: Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire: KENDA 27.5×2.4″ eBike puncture-resistant tires
Supports
Fenders: Aluminum Alloy, front and rear full coverage
Rear Rack: MIK HD compatible alloy
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount
Certification
UL Certification: UL 2849 & UL 2271
ISO Standard: ISO 42101
Drivetrain
Chainrings: 46T narrow-wide chainring
Crankset: Aluminum Alloy, 170mm
Cassette: 9-speed, 11-46T
Chain: KMC eGlide 9-speed
Rear Derailleur: SHIMANO Cues, 9-speed
Shift Lever: SHIMANO Cues, 9-speed
