Description
General Info
Model Name

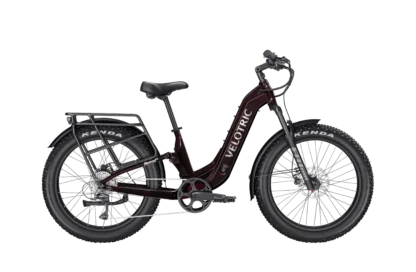

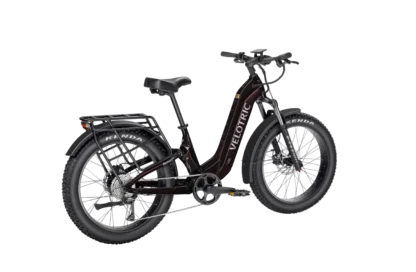

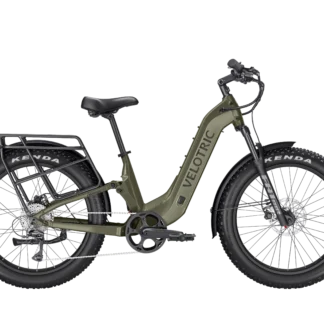

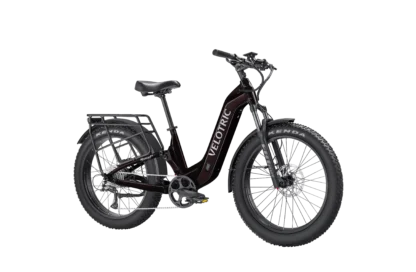

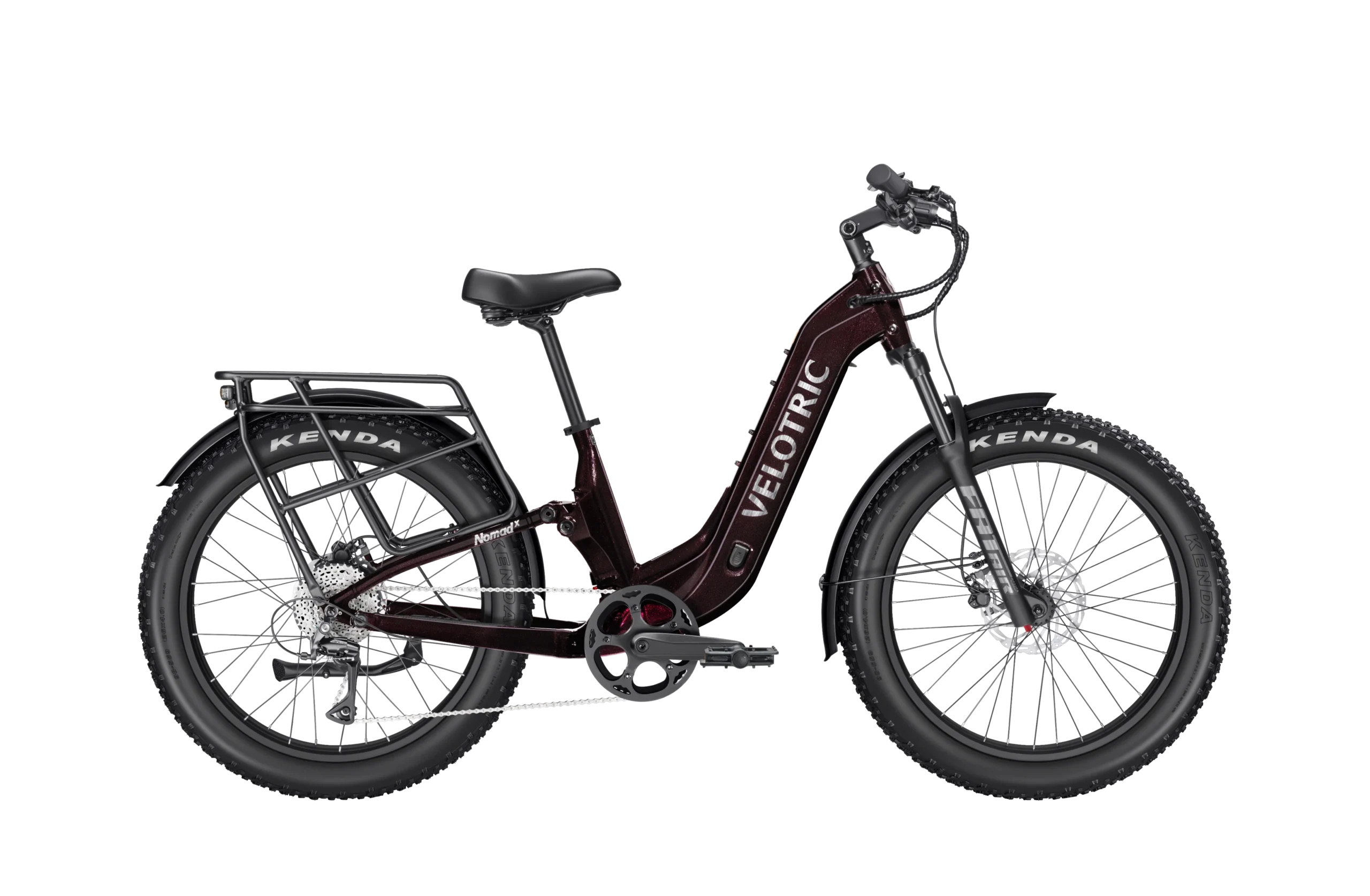

Velotric Nomad 2X
Colors
Obsidian, Royal Blue, Fig, Sage, Multicam (coming soon)
Frame
High-Step, Step-Through
Size Guide
Bike Size
Regular (Step-Through); Large (High-Step)
User Height Range
Regular: 4’11” ~ 5’10”; Large: 5’10” ~ 6’5”
Electronics
Motor
750W,105Nm Torque
Battery
Removable, 48V, 16.7Ah (801.6Wh), IPX7 & UL 2271 Certified
Cell
Samsung/LG 21700 cell, Certificated by UL2580
Display
3.5″ Full color, High brightness, Adjustable angle
SensorSwap™
Torque/Cadence
USB Port
USB Type-C phone charge
Throttle Assist
Trigger-control, removable
Pedal Assist Modes
3 Riding Modes x 5 PAS Levels
Front Light
Light sensing 130 Lux / 500 LM high-output integrated LED
Water Resistant
IPX6 (Whole Bike)
App & Apple Find My™
APP OTA & Find My
Frameset
Frame
Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel
Front Fork
Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable
Rear Shock
DNM 38mm Air suspension, 80mm wheel travel
Speed & Range
Max Speed
12~28 MPH; 20 MPH (Default)
Class
1/2/3
Throttle Range
50 Miles
Pedal Assist Range
75 Miles
Brake
Brake
Tektro Hydraulic Disc Brake
Rotors
203mm Front / 180mm Rear
Drivetrain
Chainrings
48T
Crankset
Aluminum Alloy, 170mm
Freewheel
11-40T
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed
Weight & Load
Bike Weight
80 Lbs
Max Bike Load
560 Lbs
Rear Rack Load Capacity
120 Lbs
Towing Capacity
1000 Lbs
Cockpit
Handlebar
Aluminum Alloy, Ф31.8mm, 700mm
Grips
Durable ergonomic grips, lockable
Stem
Adjustable, Aluminum Alloy, ф31.8mm, 60mm (ST) / 90mm (HS)
Saddle
Velotric Comfortable & Ergonomic Seat
Wheel
Rims
Aluminum Alloy
Front Hub
Aluminum Alloy, nutted
Tire
KENDA 26×4.0″ eBike puncture resistant tires
Supports
Fenders
Front and rear full coverage
Rear Rack
Aluminum Alloy, MIK HD
Pedals
Plastic
Kickstand
Aluminum Alloy, included, rear mount
Certification
UL Certification
UL 2849 & UL 2271
ISO Standard
ISO 4210
