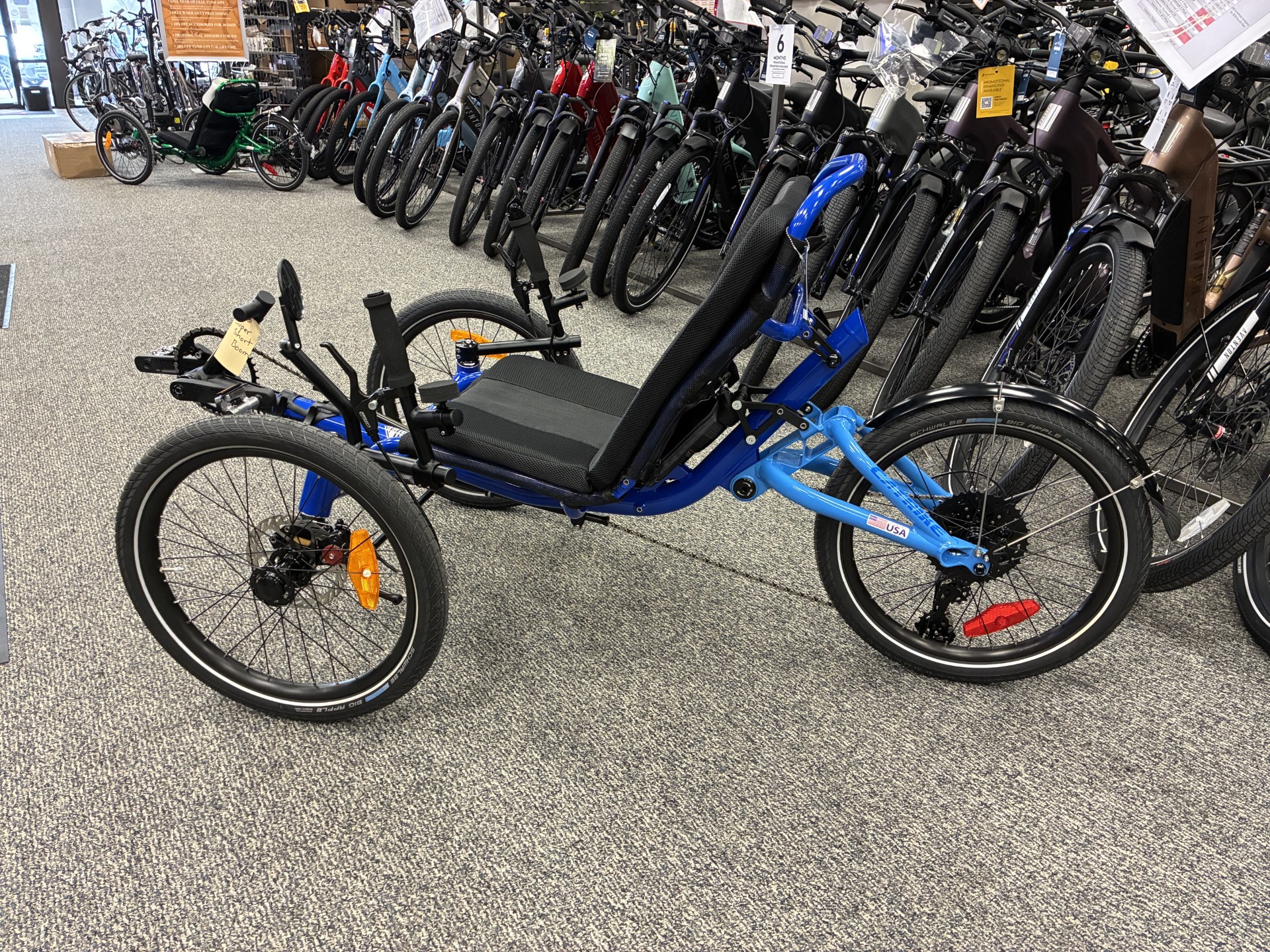

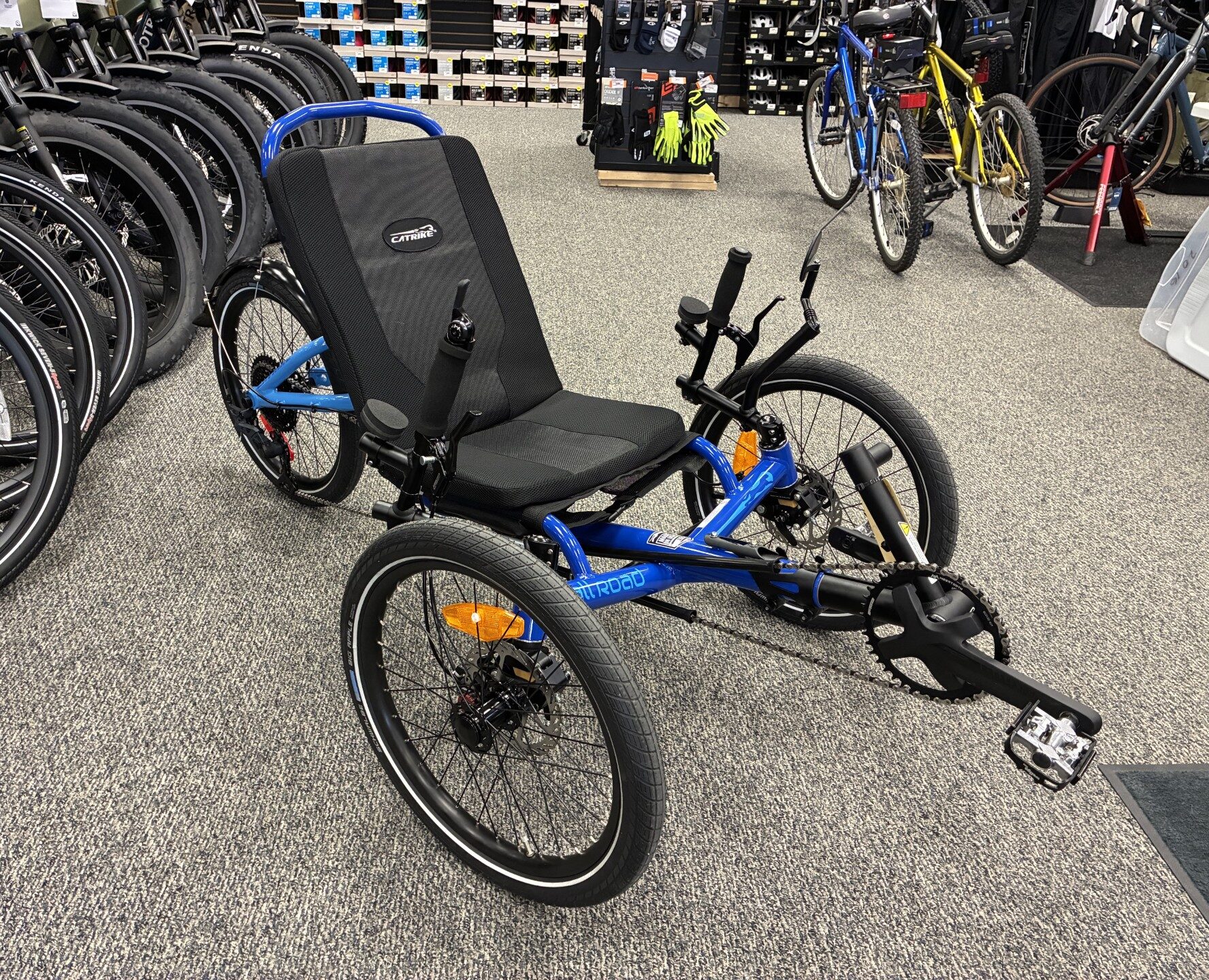

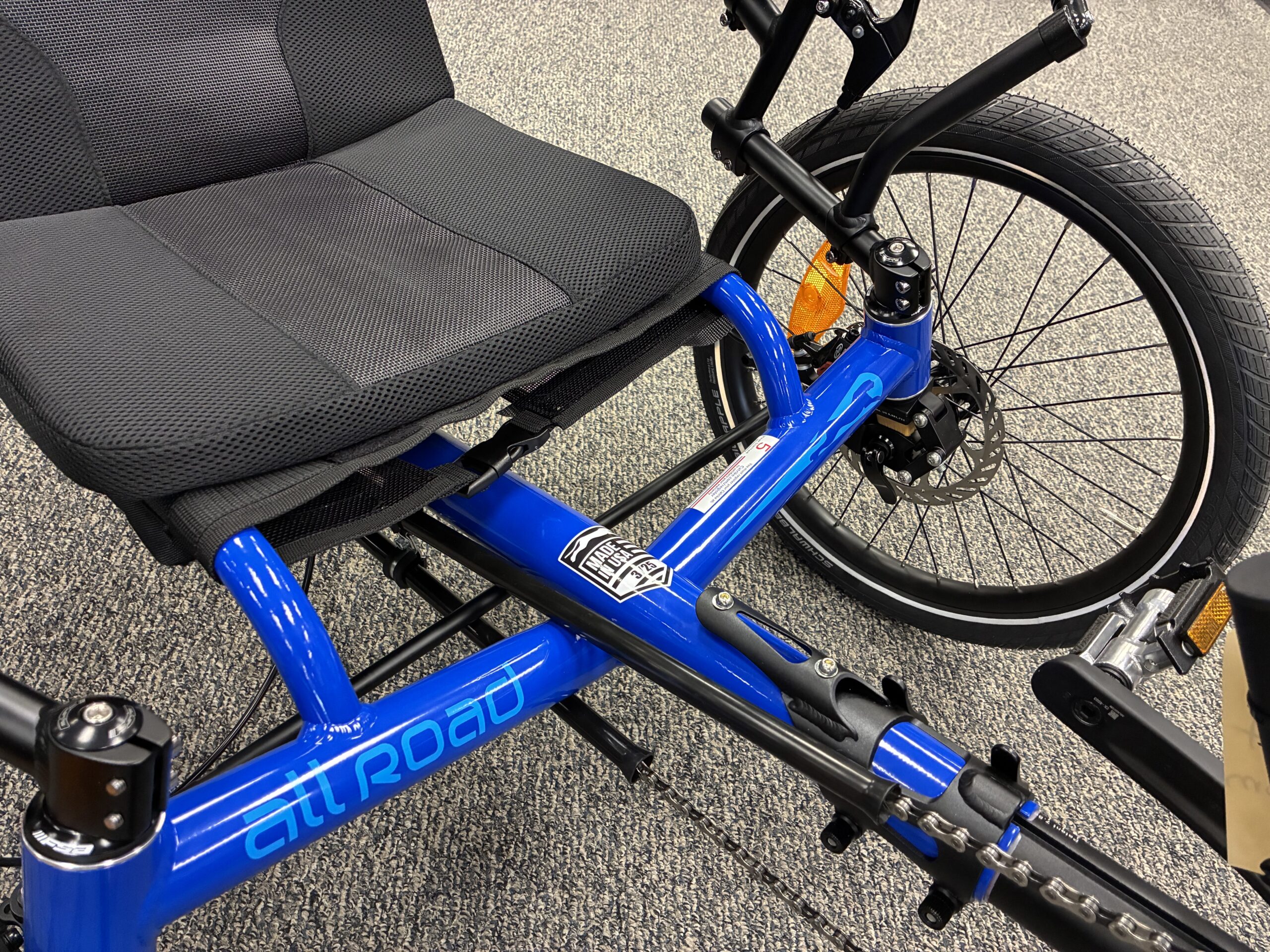

Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!)
Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!) - Image 2
Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!) - Image 3
Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!) - Image 4
Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!) - Image 5

Catrike All Road Full-Suspension Recumbent Trike, Electric Blue (3 of 25 made!)

$4,450.00

Colors currently in stock:

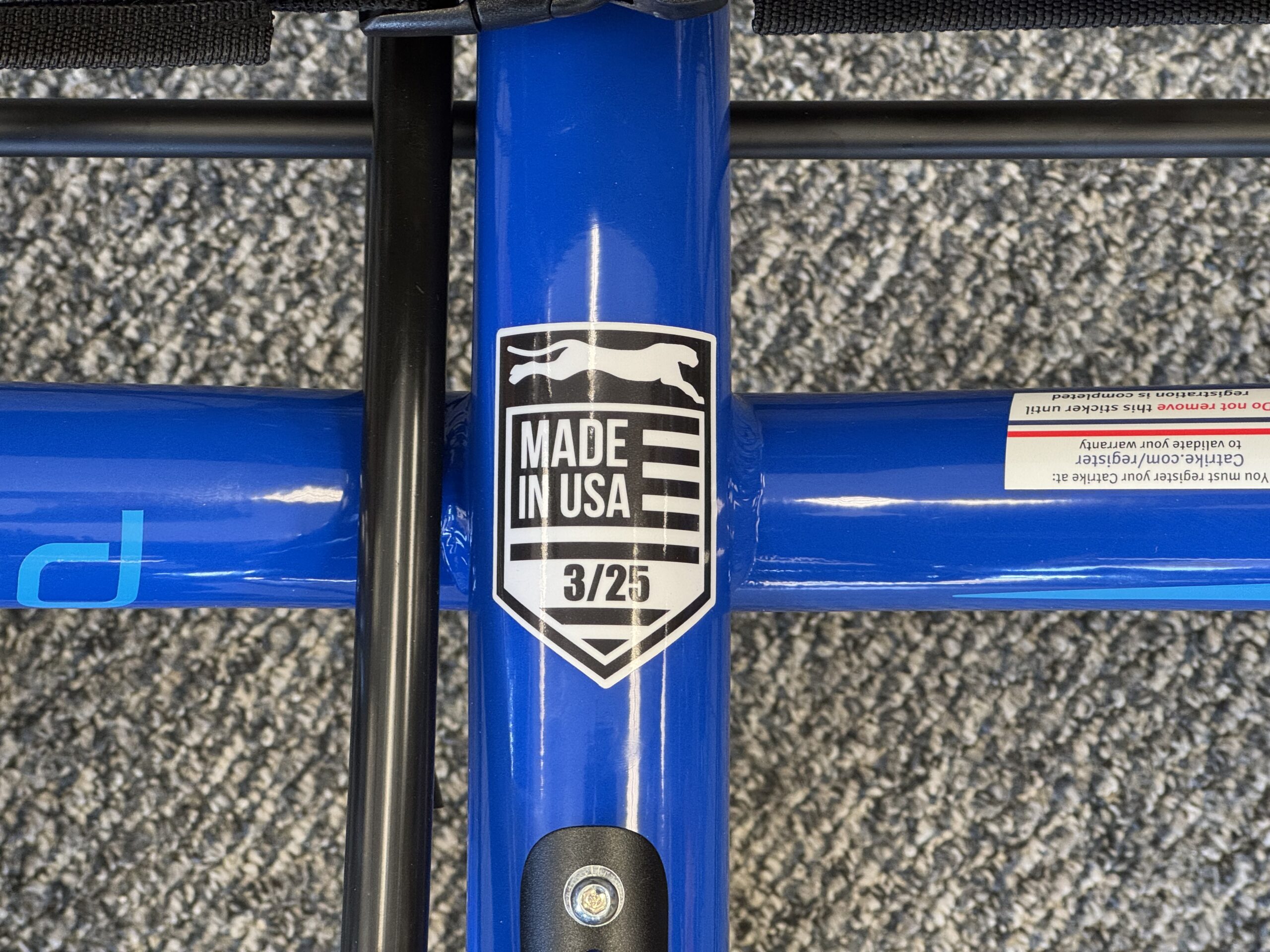

  • 25th Anniversary Blue Two-Tone (Electric Sky) 3 of 25 made! (THIS ITEM!)
  • 25th Anniversary Orange Two-Tone (Atomic Mango) 1 of 25 made!
  • All standard colors available as a no-cost special order. Call for info!

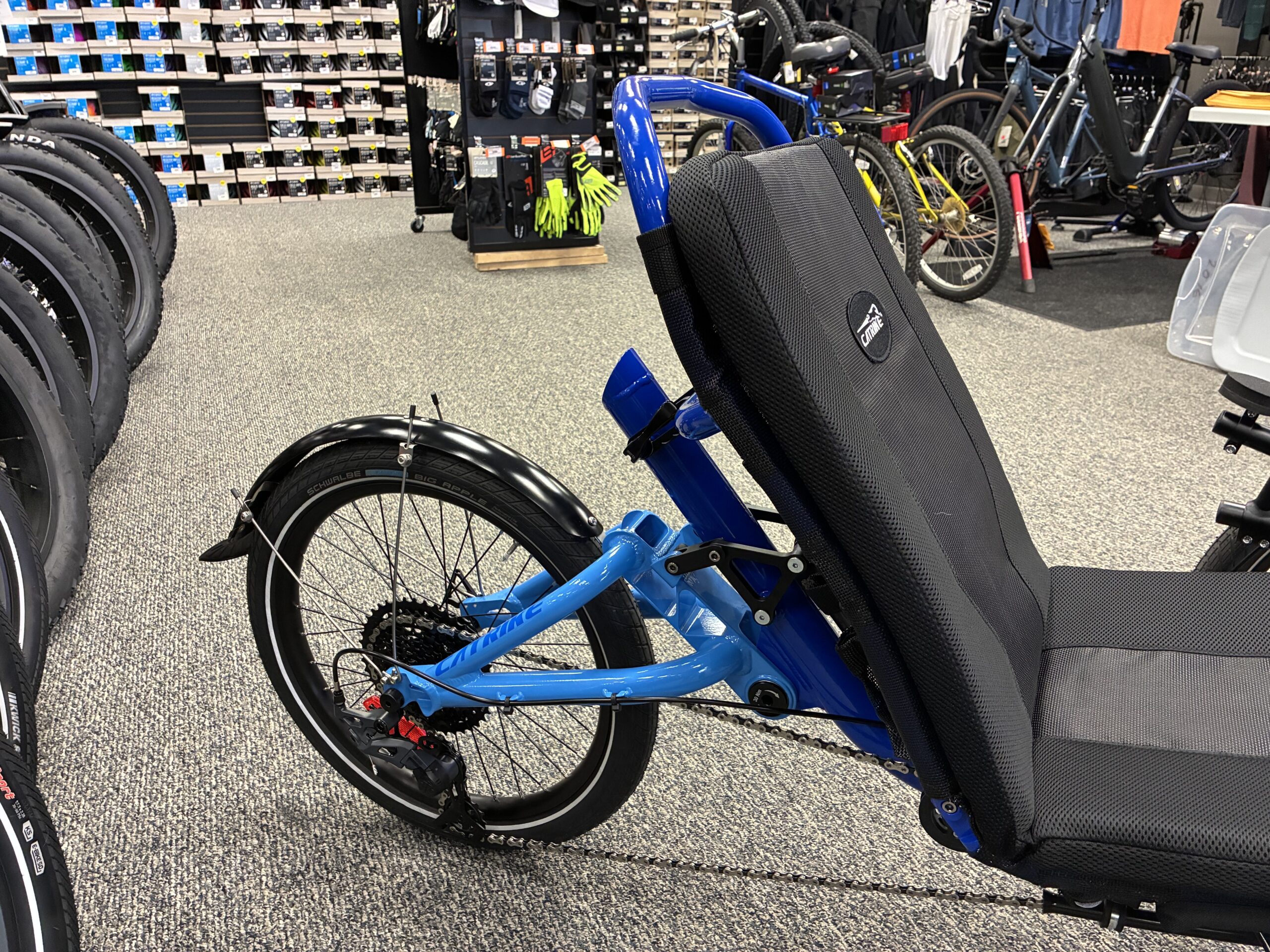

The new Catrike All Road utilizes the legendary full-suspension system pioneered on the Dumont. The All Road’s rear suspension features a progressive travel path and a custom spring rate with sophisticated damping. The CNC-machined swingarm pivots on precision cartridge bearings for durability and smooth articulation. Up front, the All Road employs our patented anti-dive front suspension axles, allowing independent movement of all three wheels. The All Road comes outfitted with three, 20-inch wheels wrapped in Schwalbe 2.0 Big Apple tires, a high and wide adjustable seat and a 1×10 MicroShift drivetrain for unmatched comfort and performance.

Categories: , , ,

Description

FRAME AND GEOMETRY

U.S. Metric
Wheel Base 40 in 1016 mm
Wheel Track 31 in 787 mm
Total Width 34.5 in 876 mm
Total Length** 73 in 1854 mm
Seat Angle 51-58 deg
Weight 43 lb 19.5 Kg
Seat Height 13 in 330 mm
Seat Width 14 in 356 mm
BB Height** 17 in 432 mm
Ground Clearance 6.5 in 165 mm
Total Height 33 in 838 mm
Height w/ Seat Folded 29 in 737 mm
Turning Circle 16 ft 5 m
Turning Radius 8 ft 2.5 m
Rider Weight Limit 275 lb 125 Kg
Rider X-Seam Range 39/46 in 99/117 cm
Front Suspension Travel 0.5 in 12.5 mm
Rear Suspension Travel 2 in 51 mm

COMPONENTS
Brakes Avid BB7 Disc Brakes
Brake Levers Catrike Locking Brake Levers
Front Derailleur N/A
Rear Derailleur MicroShift Sword 10 speed
Shifters MicroShift Bar End Shifter
Crankset FSA Omega Abs 165mm
Bottom Bracket FSA Road MegaExo
Chainring FSA 42T
Chain Guard N/A
Cassette MicroShift 11-42
Chain KMC
Idler 2 X TerraCycle Sport Power Idler 15T
Headsets FSA Zero Stack
Front Tires 406 Schwalbe Big Apple Performance 2.0
Rear Tire 406 Schwalbe Big Apple Performance 2.0

STANDARD FEATURES
Rear Fender
Flag Mount & Flag
Mirrycle Rear View Mirror
Multi Purpose Clipless Pedals
Computer Sensor Mount
No Brake Steer
Self Centering
Ackermann Steering Compensation
Structural Front Boom
Quick-Release Indexing Boom Clamp
Aluminum Rod Ends
Low Friction PTFE Flared Chain Tube
12×142 Rear Thru Axle

1 YEAR OF FREE TUNE-UPS!

All new trikes purchased from Bicycle One come with one year of complimentary tune-ups! For one year after the purchase of any new trike, you can receive free brake and gear adjustments, drive train lubrication, wheel straightening and tire inflation. And even after one year, you’ll never have to pay full price for a tune-up again; all new trikes purchased from us receive 20% off any tune-up from October 1st to March 1st!
